Lindner Urraco 95 DK

ENORMOUS POWER, FULL MANOEUVRABILITY
Two-shaft shredder for almost any material

Take mobile shredding to the extreme with the Lindner Urraco 95 DK. Thanks to its extremely powerful engine, long working length and aggressive intake, this twin-shaft show-speed shredder makes short work of almost every material—including metal. The Urraco 95 DK is an extremely reliable, cost-reducing machine with low wear and tear, easy maintenance and low energy consumption.

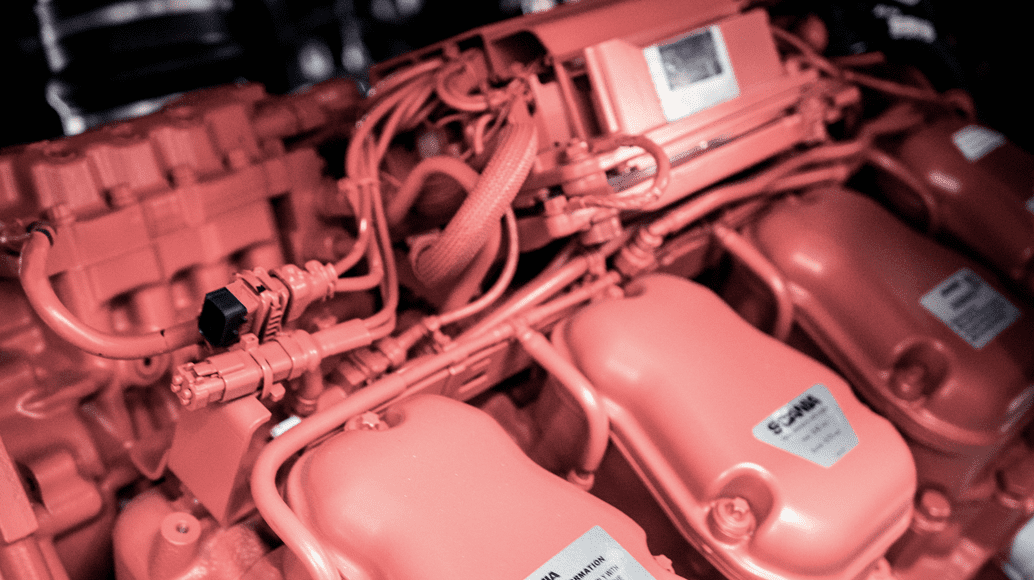

POWERFUL 566 KW DIESEL ENGINE

The Urraco is powered by an environmentally friendly, state-of-the-art diesel engine from Scania with the lowest emission standards (EU Stage V / US Tier 4f / NC (non compliant)). The 3-circuit cooling system working in unison with the engine and hydraulics ensures perfect air supply and cooling.

  • EFFICIENT SHREDDING with our 566 kW diesel engine from Scania
  • PARTICULARLY LONG SERVICE LIFE ensured by an ideal interaction between the engine and the hydraulics.
  • COMPLIES WITH ALL EXHAUST GAS REGULATIONS thanks to our state-of-the-art SCR system.

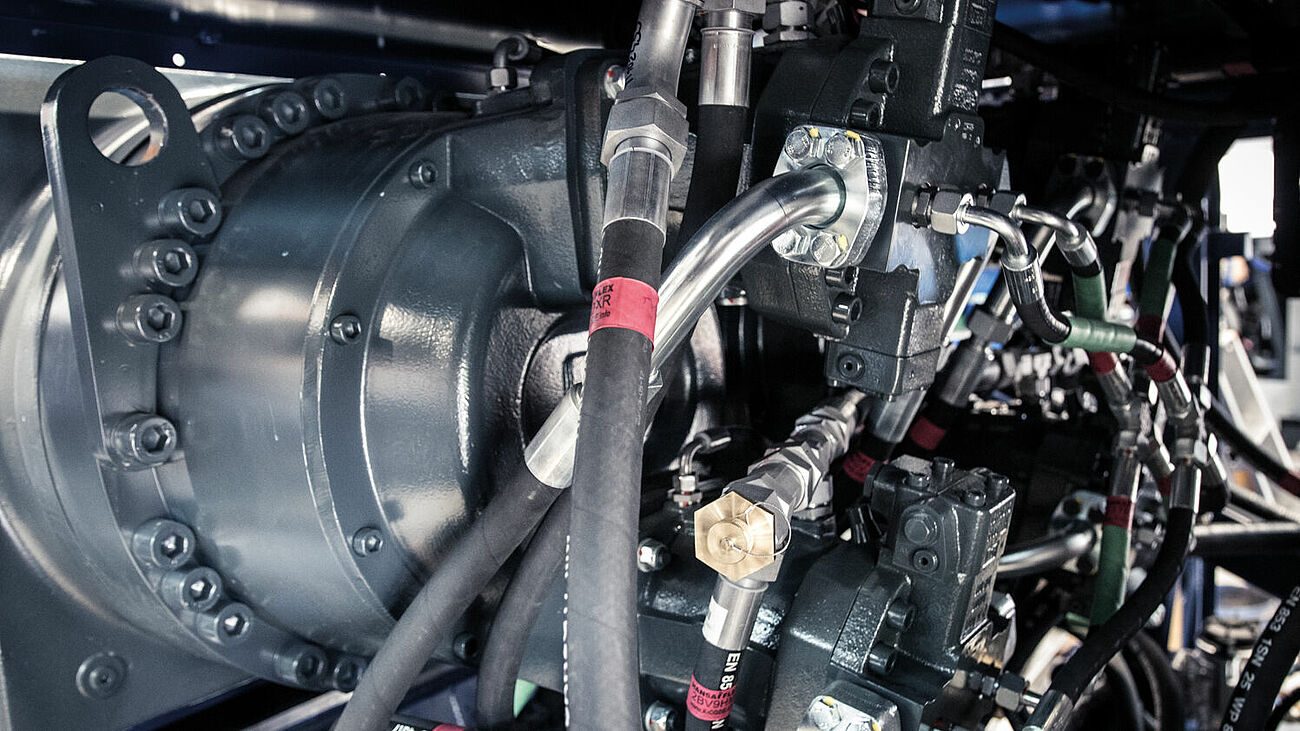

PROVEN MOBILE HYDRAULICS

The hydrostatic drive sports self-regulating hydraulics with a maximum torque of up to 480,000 Nm, crushing material powerfully with its shafts.

  • HIGH OUTPUT thanks to the self-regulating hydrostatic double drive.
  • SAFE OPERATION ensured by the instant detection of non-shreddables.
  • EFFECTIVE SHREDDING with a torque of up to 480,000 Nm and robust planetary gears.

FEEDING TECHNOLOGY

Smart hopper tilting up to 80° on both sides for optimised and even material feeding. The machine can be operated simply from the wheel loader using the optional remote control.

ROBUST TWIN-SHAFT CUTTING SYSTEM

The Urraco 95‘s slow-speed twin-shaft cutting system with cutting tools 70% longer than its smaller brother, the U75, offers aggressive intake and consequently ensures highly efficient shredding processes. Depending on the shaft selected, even the most difficult materials such as railway sleepers and light scrap metal can be processed safely and effectively.

  • INCREDIBLY PRODUCTIVE thanks to aggressive intake and the extra long shafts.
  • ADAPTS PERFECTLY TO THE MATERIAL thanks to shaft pairs available in different designs.
  • MAXIMUM RESISTANCE with our welded crushers, rippers, scrapers and breaker bars.

WELL-ENGINEERED FEED AND DISCHARGE SYSTEMS

The integrated single belt discharge conveyor is powered hydraulically and might be completely folded away. The height of the conveyor belt can be easily adjusted during operation by simply lifting the belt from the wheel loader during shredding. For particularly heavy materials such as light scrap and tough commercial waste, the conveyor belt can be reinforced with steel.

  • CONSISTENT OUTPUT with our smart double tilting hopper system.
  • FERROUS METAL SEPARATION with with optional integrated over-belt magnet.
  • LOW DUST EMISSIONS due to the hydraulic height-adjustable conveyor belt, which can even be adjusted during operation..

ROBUST TRACKED CHASSIS

The mobile Urraco 95 DK can be comfortably moved on-site with a two-hand joystick remote control. The integrated tracked system is thereby hydraulically powered by the machine and operates completely independently.

  • INDEPENDENT MANOEUVRING OF THE MACHINE thanks to hydraulic crawler tracks.
  • OPTIONAL RUBBER PADS available for gentle operation on tarmacked areas.
  • SECURE HOLD AND ANCHORING for maximum stability during operation.

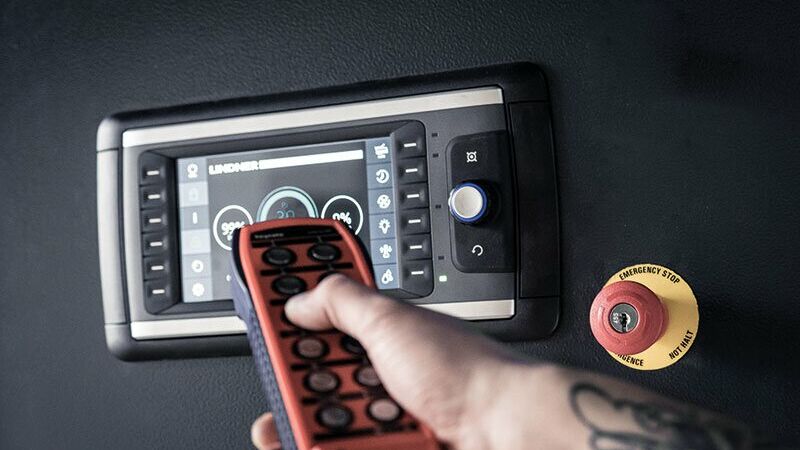

EASY-TO-USE CONTROL

Sophisticated control technology with touchscreen display and remote control for safe operation, handling and control of the entire machine.

  • SIMPLE OPERATION AND PARAMETERSETTING thanks to the intuitive touchscreen user interface.
  • EASY MANOEUVRING OF THE SHREDDER using the joystick remote control.
  • CONVENIENT SHREDDER OPERATION FROM THE WHEEL LOADER with the customisable remote control..

Waste Types


Waste

Waste
Domestic waste, organic waste, FOGO, plastics, PVC.

Biomass

Biomass
Green waste, rootstock, log wood, palms, animal manure, silo bales, grass cuttings.

Wood waste

Wood Waste
Demolition wood, pallets, chipboard, cable drums, railway sleepers.

Commercial Waste
Bulky waste, C&D waste, paper rolls, tar boards, mixed construction waste.

Metal and Scrap
Electric and electronic scrap, aluminium scrap and aluminium housings.

Tyres
Passenger car, truck, and tractor tyres.

95 DK Technical Data


Diesel drive power 566kW
Exhaust gas standard EU Stage V / US Tier 4f / EU Stage IIIA
Mobility Tracked chassis
Shaft length 2x 2500
Weight 42t
Dimensions (LxWxH) 9300mm x 3000mm x 3300mm
Discharge height, conveyor 30° 5300mm
